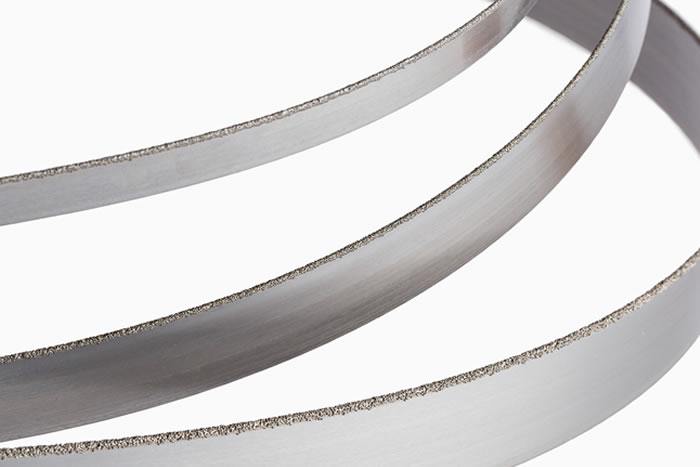

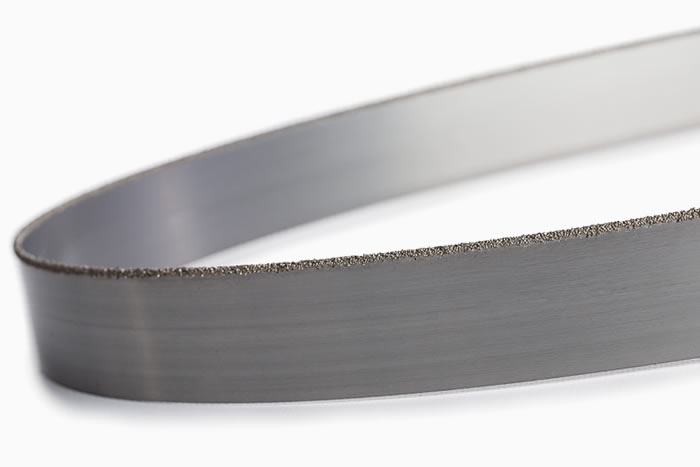

Diamond Band Saw Blades Continuous

Diamond Band Saw Blades - ideal for hard and abrasive materials that conventional blades cannot cut

Tough braze bonded diamond cutting edge for longer life
High specification, durable steel backing material
Precise, smooth, clean cuts
Excellent durability and fatigue resistance
Cuts safer, with snag free action, reducing the risk of breakages
Also available in gulleted form
 Product information sheet

Target Users

Industrial Band Saw

Size Range

9.5mm to 50.8mm
3/8” to 2”

Contact |

A dedicated sales and technical support team is on hand to help

Get in touch

Size Range

Grit: Medium (other grit sizes are available to special order)
Micron: 250 - 300
Mesh: 50 - 60
Inch   Metric
Width Gauge Kerf   Width Gauge Kerf
3/8 0.025 0.053   9.5 0.64 1.35
1/2 0.025 0.053   12.7 0.64 1.35
3/4 0.032 0.060   19.1 0.81 1.53
1 0.035 0.063   25.4 0.89 1.60
1 1/4 0.042 0.070   31.8 1.07 1.78
1 1/2 0.042 0.070   38.1 1.07 1.78
1.64 0.050 0.078   41.7 1.27 1.99
2 0.050 0.078   50.8 1.27 1.99

Applications

MATERIAL COOLANT STYLE
Silicon Y Continuous
Sapphire Y Continuous
Tungsten Carbide Y Continuous
Green Carbide Y Continuous
Granite Y Continuous
Marble Y Continuous
Pyrex Y Continuous
Masonry Y Continuous
Construction Blocks Y Continuous
Firebrick N Continuous
Composites N Continuous
Cement Panels N Continuous
Carbon/Graphite N Continuous
Glass Reinforced Plastic (GRP) N Continuous
Cast Iron N Continuous
Alumina Y/N Continuous
